What are the different types of Inline Mixers?

Inline mixers, also known as in-line mixers or continuous mixers, are essential equipment in various industrial processes, offering efficient and continuous mixing of liquids, gases, and solids. They differ from batch mixers, which operate on a fixed quantity of material at a time. Inline mixers provide continuous flow, making them ideal for large-scale operations and processes requiring precise control over mixing parameters.  This article will explore the different types of inline mixers, focusing on variations like side entry mixers, top entry mixers, top entry agitators, and plenty mixers, highlighting their applications and advantages.

Side Entry Mixers:

Side entry mixers are commonly employed in large tanks and vessels where top entry is impractical or undesirable.  They are particularly prevalent in the oil and gas, chemical, water treatment, and pulp and paper industries. These mixers are mounted on the side of the tank and extend into the fluid, offering several advantages:

• Reduced Tank Modification: Side entry mixers avoid the need for modifications to the top of the tank, simplifying installation and minimizing downtime.  This is especially beneficial for existing tanks or when access to the top is limited.

• Maintenance Accessibility:  The side mounting allows for easier access to the mixer for maintenance and repairs without requiring entry into the tank.

• Effective Mixing in Large Volumes: Side entry mixers are well-suited for mixing large volumes of liquids, ensuring homogeneity and preventing stratification.

• Variations for Specific Applications:  Different impeller designs are available for side entry mixers, catering to various mixing requirements, such as blending, homogenization, solids suspension, and heat transfer. Some common types include:

• Helical Ribbon Mixers:  Ideal for high-viscosity fluids and applications requiring gentle mixing.

• Hydrofoil Mixers:  Efficient for low to medium viscosity fluids and applications requiring high flow rates.

• Anchor Mixers:  Suitable for scraping the tank walls and preventing material buildup, particularly in viscous applications.

• Propeller Mixers:  Effective for low viscosity fluids and applications requiring high flow rates and blending.

Top Entry Mixers:

Top entry mixers are mounted on the top of the tank and offer a versatile solution for various mixing applications. They are widely used in industries such as food and beverage, pharmaceuticals, and chemicals. Key advantages of top entry mixers include:

• Efficient Mixing: Top entry mixers provide effective mixing across a wide range of viscosities and applications, from blending to solids suspension.

• Flexibility:  A variety of impeller designs are available for top entry mixers, allowing customization for specific mixing needs.

• Ease of Installation:  Installation is generally straightforward, although it does require access to the top of the tank.

• Variations for Specific Needs:  Top entry mixers are available in various configurations, including:

• Propeller Mixers:  Suitable for low viscosity fluids and blending applications.

• Turbine Mixers:  Effective for medium to high viscosity fluids and applications requiring high shear.

• Paddle Mixers:  Used for low to medium viscosity fluids and gentle mixing applications.

• Anchor Mixers:  Suitable for scraping the tank walls and preventing material buildup.

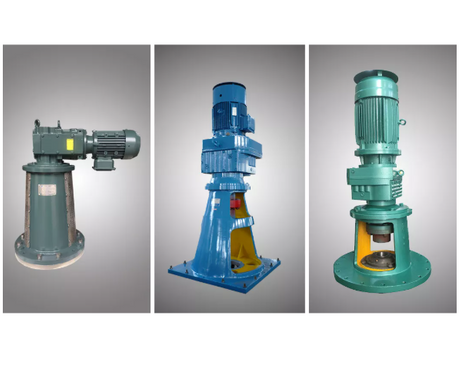

Top Entry Agitators:

Top entry agitators are a specific type of top entry mixer designed for applications requiring more vigorous mixing or agitation.  They are often used in processes involving solids suspension, gas dispersion, or intense blending.

• High Shear Mixing: Top entry agitators can generate high shear forces, making them suitable for breaking down agglomerates, dispersing gases, and creating emulsions.

• Robust Construction:  These agitators are typically built for heavy-duty applications and can handle demanding mixing conditions.

• Specialized Impellers:  Impellers for top entry agitators are designed for specific purposes, such as high-shear mixing, gas dispersion, or solids suspension.

Plenty Mixers:

Plenty mixers, often referred to as "Plenty" brand mixers, are a type of inline mixer known for their robust construction and efficient mixing capabilities. They are commonly used in marine applications, such as fuel oil blending and ballast water treatment.

• Compact Design: Plenty mixers are often designed for compact spaces, making them suitable for shipboard installations.

• High Mixing Efficiency:  They provide efficient mixing in a relatively short length of pipe, minimizing pressure drop.

• Durable Construction:  Plenty mixers are built to withstand harsh marine environments and demanding operating conditions.

Choosing the Right Inline Mixer:

Selecting the appropriate inline mixer depends on several factors, including:

• Fluid Viscosity:  Low viscosity fluids require different impeller designs than high viscosity fluids.

• Mixing Application:  Blending, homogenization, solids suspension, and gas dispersion each require specific impeller types.

• Tank Size and Geometry:  The size and shape of the tank influence the choice of mixer and impeller.

• Process Requirements:  Factors like temperature, pressure, and chemical compatibility must be considered.
