Product Description
Function and Use: Determine the specific function and use of the mixer you need. The characteristics of the chemical solution may place special requirements on the stirrer, such as corrosion resistance, oxidation resistance, etc. You need to choose the type and configuration of stirrer suitable for mixing chemical solutions.
Power and speed: 5.5kW of power is suitable for small and medium-sized chemical solution mixing tasks. You can determine the appropriate mixer speed and power based on the size of the mixing container and the viscosity of the solution.
Material selection: Since chemical solutions can be corrosive, you need to choose a corrosion-resistant material such as stainless steel 316L or a special coating. This will ensure that the mixer will remain stable and durable when exposed to chemical solutions for extended periods of time.
Mixing method: According to the characteristics of the chemical solution and mixing requirements, choose the appropriate mixing method. Common stirring methods include impeller stirring, turbine stirring or magnetic stirring. You can choose the most appropriate method according to the specific solution characteristics.
| Tank size | 1430*1750MM |
| Medium | Sodium chlorate |
| Mixer model | FBAI-5.5KW |
| Rotating speed | 149 RPM |
| Weight | 470KG |
(The data is for reference only)
Convenience and efficiency

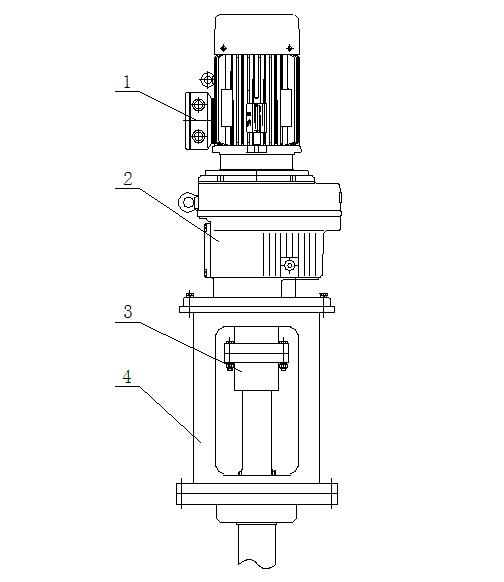

KEHENG top-entry agitators provide excellent and cost-effective applications all types of fluids,including high-DS fibrous sludge.KEHENG top-entry agitators combine dry-installed drives with robust shafts and impellers,so that can guarantee reliability,energy efficiency,hygienic handing,and simplicity of installation and service.
Reliability and flexibility
Every component of KEHENG top-entry agitators is designed for continuous operation.Parallel shaft geared motors combined with rigid drive shafts and
specially designed impellers contribute to long-lasting operation.
Outstanding impeller design
Choose our standard impellers or other blade impellers,you exceptional thrust and high bulk flow along with excellent energy efficiency.
Flexible design for any requirement
Our top-entry agitator has several different designs that can be selected to your needs.Simply requirements we need to know and then recommend the configuration better for you by specifying the impeller type,number,size,shaft,and position.
-----Fast and powerful mixing
-----The bearing size is far beyond the AGMA requirements,easy to maintain and long service life.
-----Design for mixing high viscosity liquids and high solid liquids.
-----The maximum output shaft for each allowed torque is used for larger bending designs and longer shafts.
-----The bearing protection gear system is protected from serious shaft bending.
-----Tapered roller bearings handle cantilever shaft load.
-----Reliable,trouble-free performance with quality components--In-house testing and evaluation of mixing applications.
-----Providing custom-designed for special application.
-----According to technical expertise,application experience and market knowledge,selecting the proper--drive for your mixing needs.
-----From initial design,to installation and startup and aftermarket parts,we provide excellent service.

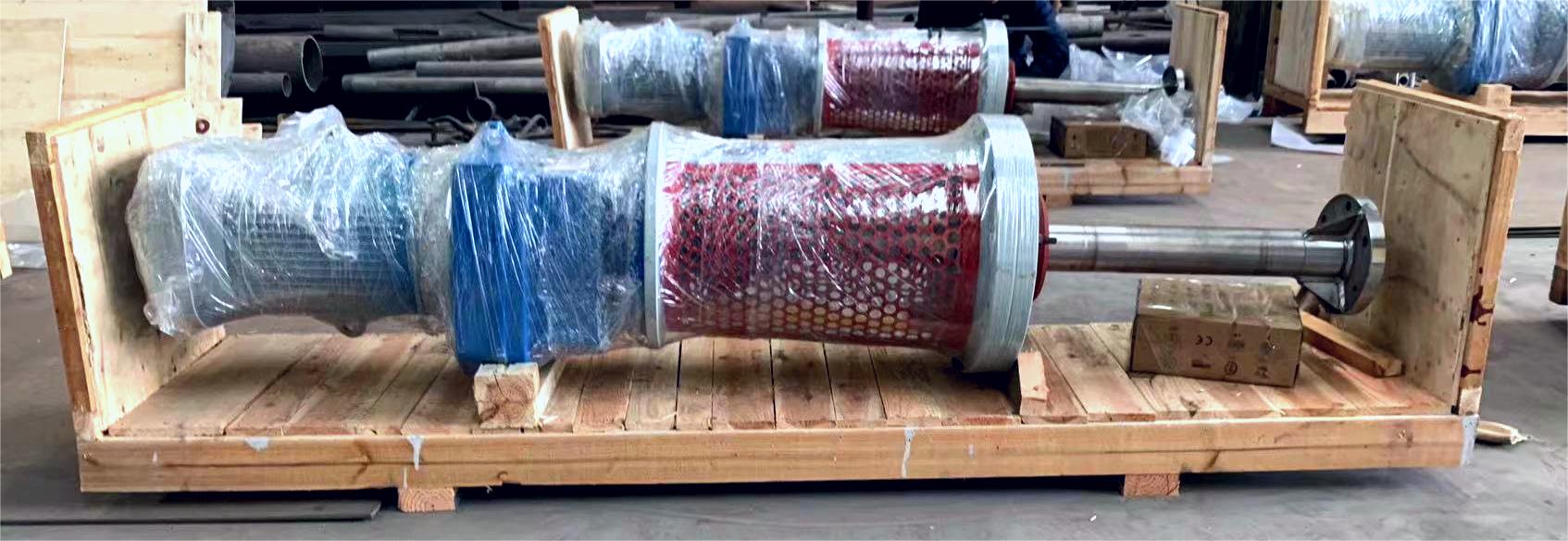

Product Packaging
|
Application Video
|
Comment & FAQ
1.What causes the abnormal noise when the mixer is running?
Abnormal noise may be caused by:
Loose or worn parts of the mixer: Check the parts of the mixer to make sure they are tight and not worn. Repair or replace parts if necessary.
Bearing failure: Bearings may make noise due to wear or insufficient lubrication. Please check the bearings and perform necessary maintenance or replacement.
Unstable installation: Make sure the mixer is properly mounted on a firm stand and is not loose or offset.
2.What if the mixer speed cannot be adjusted?
If the mixer speed cannot be adjusted, check the following:
Controller failure: Make sure that the mixer controller is working properly and that the adjustment button or knob is not damaged. Repair or replace the controller if necessary.
Power problems: Check that the power supply is stable and ensure that the power cord of the mixer is connected correctly.
Motor failure: If the motor is damaged or malfunctioning, it may cause the speed to be unable to be adjusted. Please contact professional maintenance personnel for inspection and repair.
3.What if the mixer overheats during operation?
If the mixer overheats while running, it could be one of the following reasons:
Overload: Check whether the mixer exceeds its rated load. If so, reduce the load or upgrade to a higher power mixer.
Fan failure: Check whether the mixer fan is working properly. If the fan does not provide sufficient cooling, it may cause the mixer to overheat. Please contact maintenance personnel for inspection and repair.
Ambient temperature is too high: If the ambient temperature is too high, the mixer may be affected. Make sure that the ambient temperature around the blender is appropriate and that adequate ventilation is provided.
|
